Starlink Mini is a compact, portable kit that can easily fit in a backpack, designed to provide high-speed, low-latency internet on the go.
Acquisition
I purchased the Starlink Mini during the January 2025 regional discount, this reduced the purchase price to $299 from what was the normal $599 the months before and after (at least).
This technology is just amazing and I just had to own it. The idea of talking to satellites in the middle of nowhere, to have full internet service is just amazing.
With no plan to use it on a daily basis, my intention was to use it for remote camping (never any more than four weeks a year), and to loan to family and friends (maybe friends of friends).
Equipment Hire
I want to see this hardware be used, but I will ask for the assistance to maintain this hardware for use, for example purchasing the a newer version in the distance future.
| Hire rate | $1/day |
I’ve decided on this amount with the thought of 300 days of use, means it’s paid itself off, which over a few years will mean I can buy the latest version if needed.
What Do You Need To Know
Below are the details of this equipment, and things I’ve learnt you might need to know to loan it.
Plans
Roaming plans are best for RVs, nomads, campers, and working on the go compared to residential that is best for households that works on a fixed location
| Roam 5GB | $15/month |
| Roam 50GB | $80/month |
| Roam Unlimited | $195/month |
- Billing is a calendar month (1st of the month) billed to the end of the month.
- If reactivating later in the month, the plan amount and data is prorated to the end of the month.
- Using beyond the end of the month will incur a full month charge, unless I can split the loan with someone else to negotiate unused time/data.
- Non unlimited plans can purchase more data at $3.00 per GB.
Roam Plan Key Features
- Countrywide Coverage
- In-motion Use
- International Travel
- Coastal Coverage
- Pause Service
Integrated WiFi 5
These are changeable but at the moment these details are;
| SSID | LanchburyMini |
| Passphase | Issued on loan |
What’s In The Box

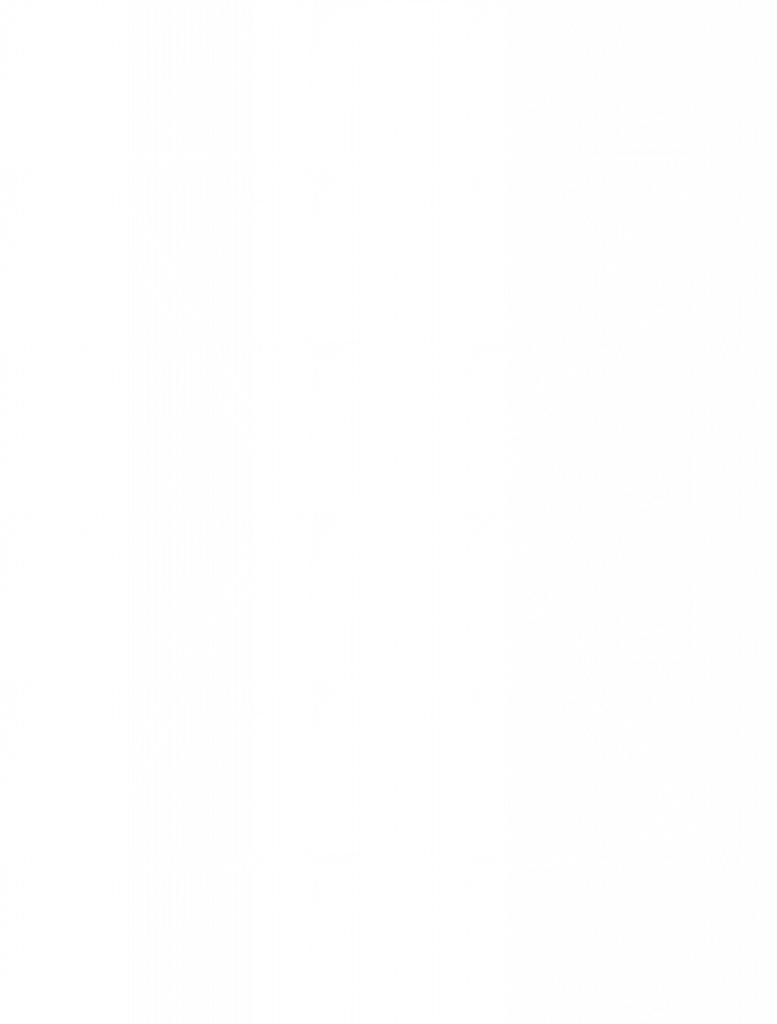

Starlink Mini
Kickstand

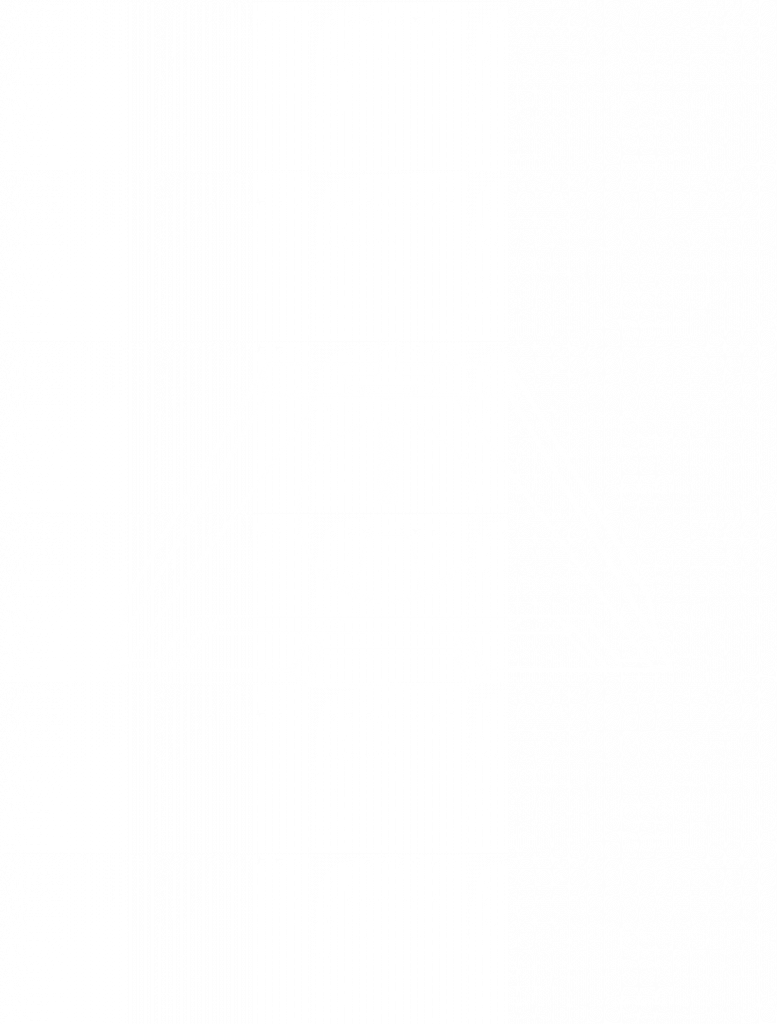

Pipe Adaptor
DC Power Cable
15m (49.2ft)

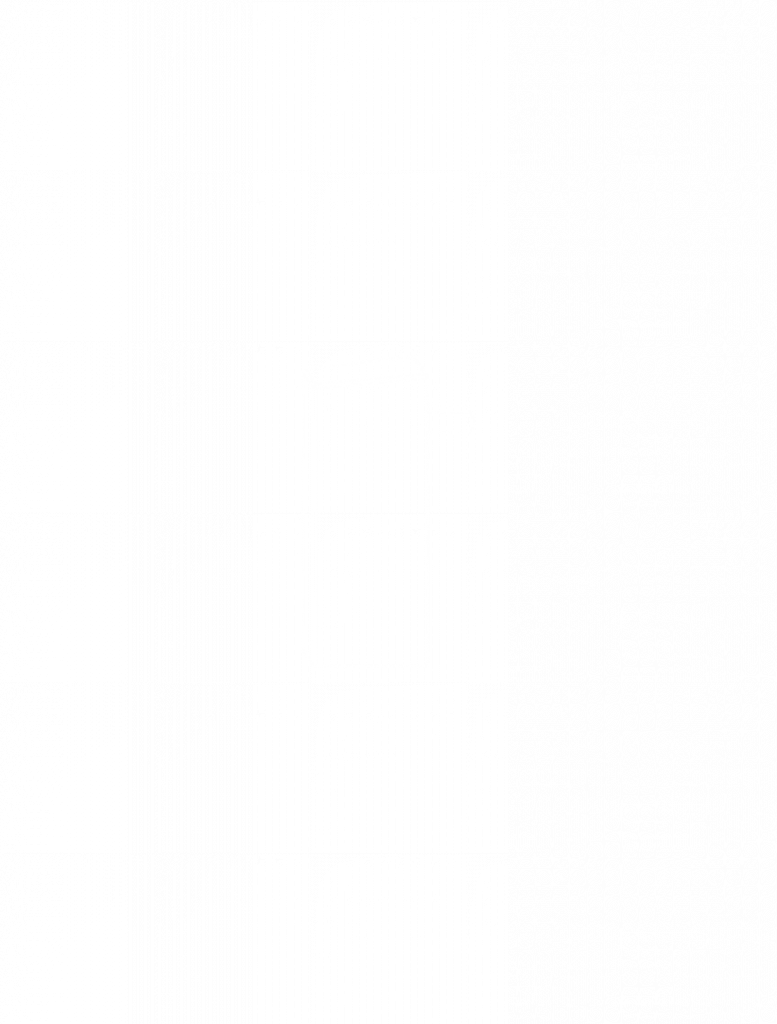

Power Supply

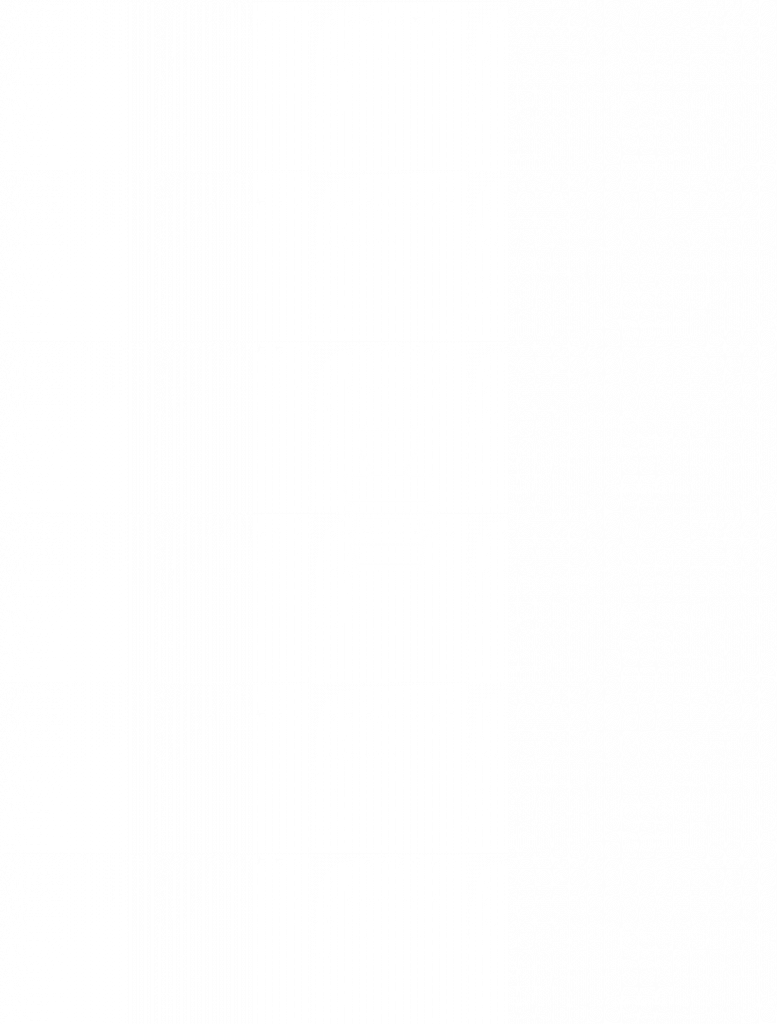

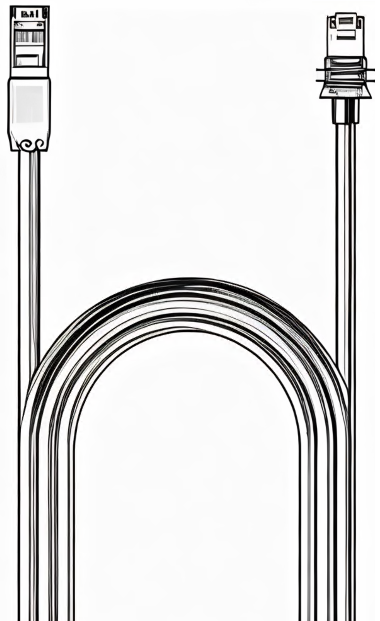

Starlink Ethernet Plug
(IP65 Requirement)
Mini Car Adapter
USB-C PD
Mini USB-C Cable
5 m
USB C to Female DC Adapter Power Cable
Mobility Mount
(On Request)
Starlink Mini Specs & Details
| Package Weight | 6.73 kg (14.83 lbs) |
| Package Dimensions | 430 x 334 x 79 mm (16.92 x 13.14 x 3.11 in) |
| Antenna | Electronic Phased Array |
| Field of View | 110 ° |
| Orientation | Software Assisted Manual Orienting |
| Weight | 1.10 kg (2.43 lb) 1.16 kg (2.56 lb) with Kickstand 1.53 kg (3.37 lb) with Kickstand & 15 m Cable |
| Environmental Rating | IP67 Type 4 with DC Power Cable and Starlink Plug/Cable installed |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Wind Speed | Operational: 96 kph+ (60 mph+) |
| Snow Melt Capability | Up to 25mm / hour (1 in / hour) |
| Power Consumption | Average: 25W (40W with Ice Melt) |
| Input Rating | 12-48V 60W |
| USB PD Requirement | 100W, 20V/5A Minimum (with Starlink USB-C to Barrel Jack Cable Accessory) |
| Wi-Fi Technology | 802.11a/b/g/n/ac |
| Generation | WiFi 5 |
| Radio | Dual Band 3 x 3 MU-MIMO |
| Ethernet Ports | One (1) Latching Ethernet LAN port with Starlink Plug |
| Coverage | Up to 112 m² (1,200 ft²) |
| Security | WPA2 |
| Power Indicator | LED | rear face plate, lower left corner |
| Mesh Compatibility | Compatible with all Starlink mesh systems *Not compatible with 3rd party mesh systems |
| Devices | Connect up to 128 devices |
Dimensions
259 mm
(10.2 in)
38.5mm
(1.45 in)
295.8 mm
(11.750 in)
259 mm
(10.2 in)
Mini AC Power Supply
| Product Dimensions | 91 x 44 x 51 mm (3.6 in x 1.7 in x 2.0 in) |
| Weight | 0.2 kg (0.44 lbs) |
| Environmental Rating | IP66 Type 4 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Power Specifications | 100-240V ~ 1.6A 50 – 60 Hz |
91 mm
(3.6 in)
44 mm
(1.7 in)
51 mm
(2.0 in)
Mini DC Car Adapter
The Starlink Mini Car Adapter is designed to power your Starlink Mini on-the-go via USB-C, replacing the Mini 15m Power Cable and Mini Power Supply from the Starlink Mini Kit. The Mini Car Adapter can be used with any standard automotive 12-24V auxiliary power outlet, commonly referred to as the car cigarette lighter.
| Compatibility | Starlink Mini |
| Kit Contents | Mini Car Adapter, Mini USB-C Cable |
| Package Dimensions | 208.5 x 153.75 x 67.5 mm (8.21 x 6.1 x 2.67in) |
| Package Weight | -0.43kg (0.95 lbs) |
80.4 mm
(3.17 in)
42.2 mm
(1.67 in)

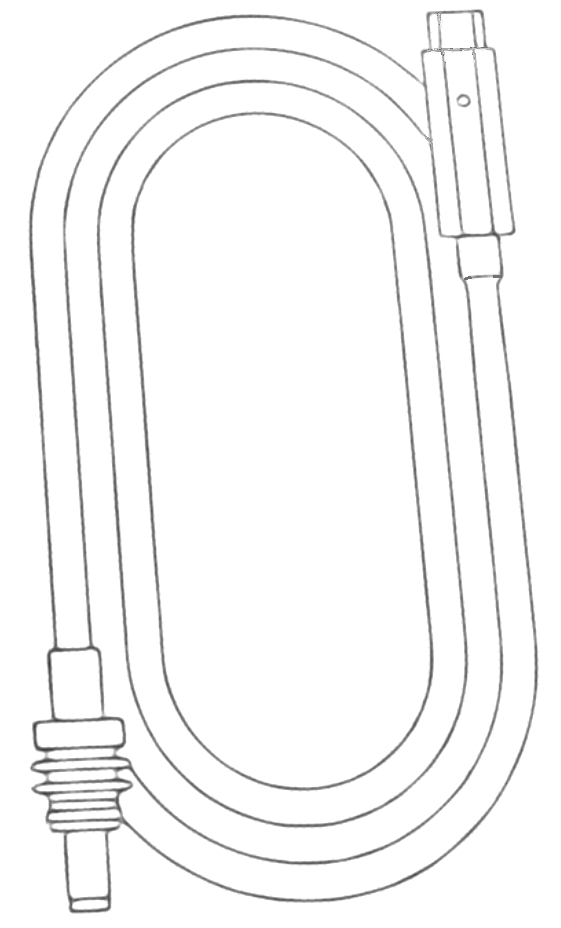

Mini USB-C Cable 5 m
The Mini USB-C cable is designed to power your Starlink Mini on-the-go via USB-C, replacing the Mini 15m Power Cable from the Starlink Mini Kit. Requires a 100W (20V/5A) power source. Note: This USB-C cable is specifically designed for powering your Starlink Mini and is not suitable for charging devices like cellphones.
| Compatibility | Starlink Mini |
| Cable Length | 5 m (16.4 ft) |
| Package Dimensions | 135 X 90 X 46 mm (5.3 x 3.5 x 1.8 in) |
| Package Weight | 0.3 kg (0.66 lbs) |

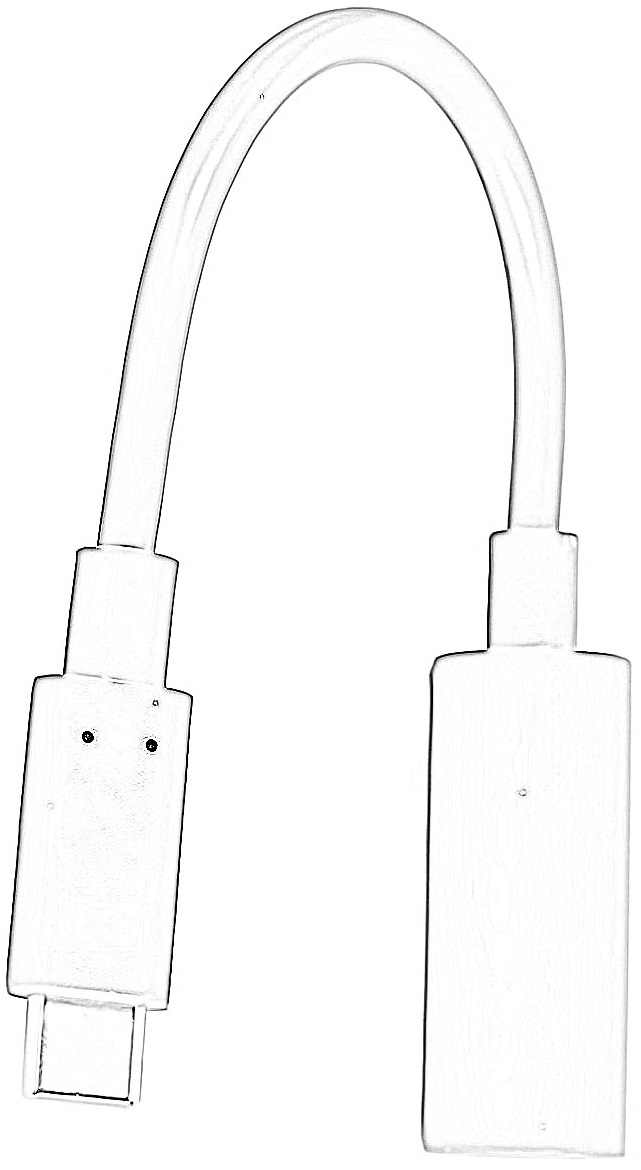

Male USB C to Female DC Adapter Power Cable
100W 20V 5A PD Input, 6.7 Inch Extension Cord
Compatible with wall plugs, power banks, and car chargers, this USB C to DC adapter cable eliminates worries about finding the right power source to keep for Dish running efficiently in any situation.
Lightweight and easy to carry with a length of 6.7 inch, the USB C to DC power cord provides a stable power supply, withstanding any harsh weather conditions you may encounter.
The USB C to DC adapter cable allows you to power the Mini by using USB C devices, like portable PD power banks, ensuring dependable outdoor use and continuous satellite connection without the need for traditional power sources.
Mini Mobility Mount
The Mini Mobility Mount is designed to create a waterproof seal and protect against water ingress when permanently mounting to wood, fiberglass, metal, and plastic. The Mobility Mount features stainless steel fasteners, which are corrosion resistant to support harsh environments. This durable and versatile mount also supports a 9 degree mounting angle to maintain a signal during extreme and wet weather conditions.
Kit Contents: Mobility Mount, 2x 50 mm Bolts, 2x 30 mm Bolts, 2x 20 mm Bolts, 2x Nyloc Nuts, 2x Stainless Steel Washers, 2x Sealing Washers
